Product Characteristics
| Model No. |

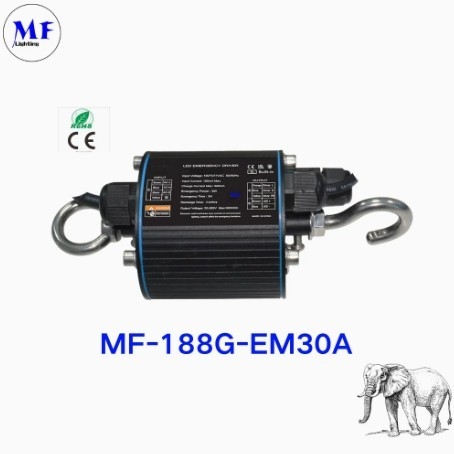

MF-188G-EM30A |
| Power |
5~20W |
| Frequency Range |
50Hz--60Hz |
| Size |
200*88*88mm, 275*88*88mm |
| Discharge Time |
3h |
| Material |
LiFeP04, Li-ion, Lithium, Nickel-Cadmlum, Sealed Lead-Acid, Optional |
| Waterproof Rating |
IP65 |
| Input |
AC220~240V |
| Output |
DC 20~260V |
| Certificates |
CE, ROHS, CB,MSDS, etc. |
| Output Current |
≤ 3A |
| Applicable for The Types of Lamps |
Industrial and mining lamps, etc. |
| Driver Standard |
EU Standard |
self-detect:
constant power emergency output,
apply to constant current driver external lighting products,
LiFePO4 using together,
battery: over-charge/discharge,
protection and short circuit protection,
working environment: temp.: 0 to 60ºC,
IP65 standard,
not suitable for high risk lighting environment,
Accessories: integrated waterproof,
button and indicator light, remote control,
3 yrs warranty,
Application for Light
This power supply is mainly used for emergency lighting fixtures.
But our this series of power supplies also can be used in various types of lamps, such as flat panel lights, panel lights, Tri- proof lights,
Can be use in indoor and outdoor hanging lights, such as industrial and mining lamps etc., whose external drive output current is ≤3A.
Product Line
Product Parameters

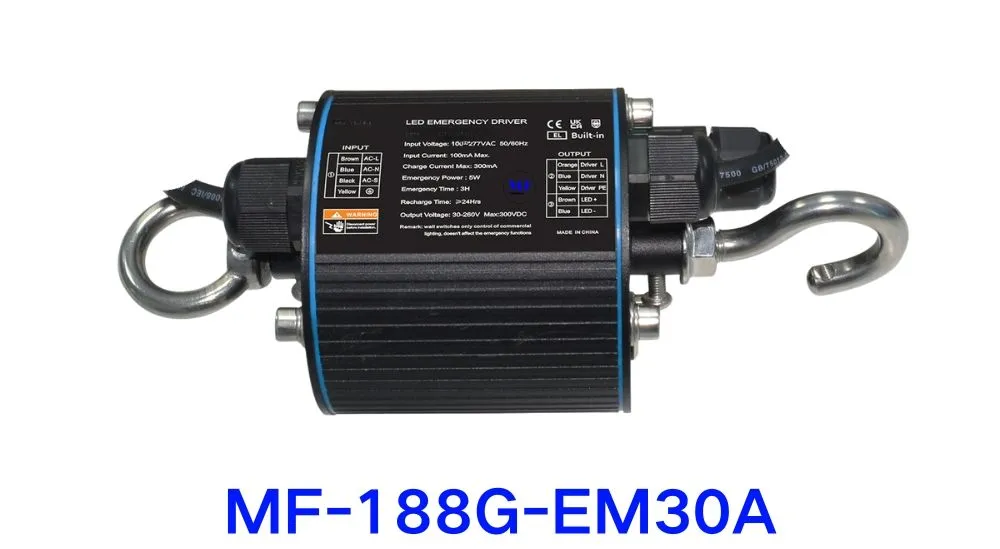

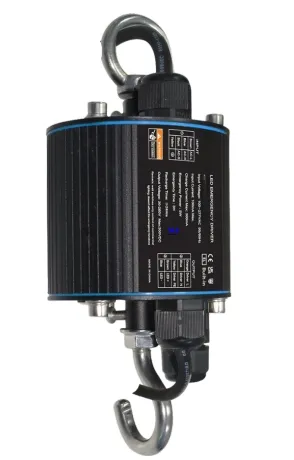

Detailed Photos
LED and Test Button Status
TEST BUTTON:
1: 0S<Key ON ≤1S,Enter a simulated state of emergency,the green indicator blinks once every second,
2: 0S<Key OFF ≤1S,In simulated state emergency situation, return to the nomal charging state,
3: 0S<Key ≤1S,In the emergency state, the emergency state is turned off.
SELF-TEST:
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.
Attention Indication
Installation and Notifications:
1: If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
Tailor Products for U Market
Q1: If you feel that this product is higher than your market demand, resulting in you selling this product without any profit at all???
A1: Then please contact us as soon as possible, our professional team will order more suitable products for you!
Q2: If you need higher performance products to meet your needs???
A2: Then please contact us as soon as possible, we will order the most suitable products for you in the shortest time!
A3: If you want a totally different design of outter shape???
Q3: No Problem! Calling us, we customize a private Light for U!
Q4: Can I print my logo on the led light?
A4: Yes, we provite OEM service to our customers. We can help to make the label and color box according to our reqirements.
Q5: What if I receive defective products?
A5: The defective rate of our lights is less than 0.2% according to our shipment records. If there is any defect during the warranty period, please call for us and provide us the evidents of the defective one in working situations, and we will ship new lights to you witnin a few days or together with your next order.
Q6: Do you have own factory?
A6: Yes, we specialize in research and development for LED Lights over 14 years, as well as manufacturer, and operate based on iso quality management since 2009.
Q7: Can I order several samples testing by myself?
A7:Yes, we welcome sample orders to test and check the quality of our products. Mixed sample can be acceptable. |
We are supported air shipment, marine shipment also others delivery means. Our company is strategically located in Dongguan, close to Shenzhen Shekou Port, Dongguan Humen port, and Zhanjiang Haian New Port and other ports. In addition, our company is also close to Shenzhen Airport, Guangzhou Baiyun Airport, Foshan Airport.
In addition, our city and nearby cities have a very developed railway network and highway network. It is very convenient for transportation.
In terms of product packaging, we adopt a multi-layer packaging, using internal packaging and external packaging, while also laying a layer of sponge around the product. This careful packing makes the product less likely to be damaged in transit.

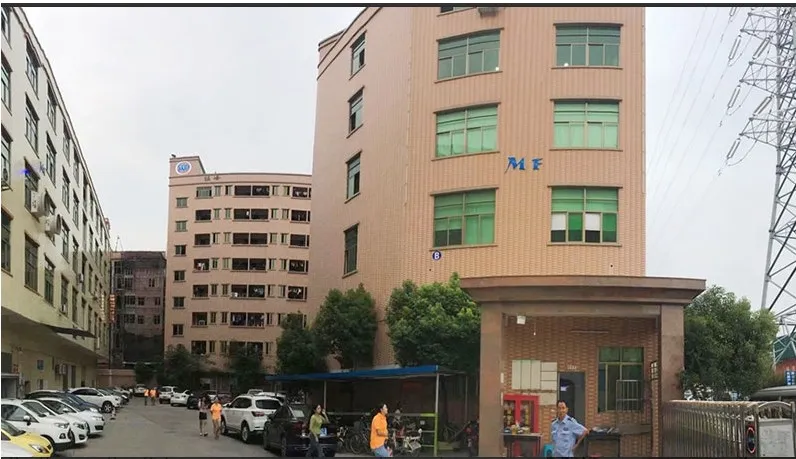

About Us:
Ming Feng Lighting Co., Ltd is one of the leading LED light product, located in Guangdong Province, China. Established in year 2009 and has more than 15 years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED outdoor lamp. For the LED indoor light, we are producing the LED Triproof Lights, LED Vapor Tight Lights,LED down lights, LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED stadium lights,outdoor LED landscape light and some of LED Aviation Obstruction light, LED Search light. With the rapid growth of our sales volume in the market, our R&D are expanding quickly to meet the market demands. Our partners come from all over the world.
