High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments

Min sipariş miktarı : 1 adet Ambalaj bilgileri : 185*38*24.5mm
Teslim süresi : 7 Hafta Günü Ödeme koşulları : L/C, D/A, D/P, T/T, Western Union
Yetenek temini : 5000 adet/ay
Menşe yeri: Çin Marka adı: MF
Sertifika: CE, RoHS Model numarası: MF-S230

Detay Bilgi

Kullanımı: Tehlikeli sanayi alanları Pil Türü: Lityum pil
Sistem Etkinliği: 110 lm/ağırlık Sistem güç tüketimi: 2x5W
SKK: 6000K Çizgi açısı: 90°
Lens: Temiz/sis
Vurgulamak:

Lithium Battery Emergency LED Light

,

IP66 LED Emergency Light

,

Hazardous Gas Emergency LED Light

Ürün Açıklaması

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments

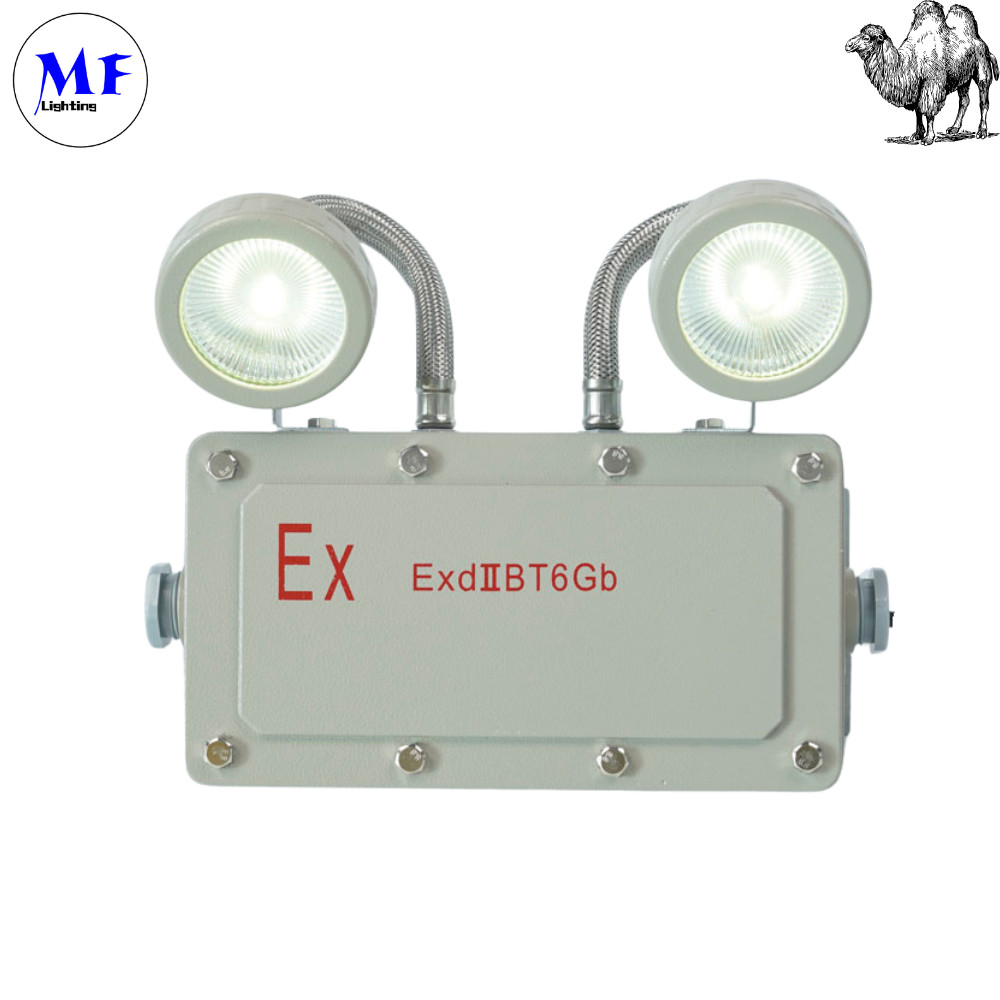

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 0




Features:

1. Performance and Efficiency

Achieves a system efficacy of 110lm/W for high energy efficiency.

Features a power efficiency greater than 90%, contributing to energy savings.

Offers a lifespan of 10 years at 12 hours/day, minimizing long-term maintenance costs.

2. Design and Safety

Rated IP66 for excellent dust and water resistance.

Constructed with durable materials including metal, aluminum, and tempered glass.

Equipped with an IEC certified driver for reliable operation.

3. Flexibility and Convenience

Provides a beam angle of 90° for broad illumination.

Charges in 24 hours and has a discharge time of up to 3 hours,

Compact size of 260x60x215mm for easy installation in various settings.




Key Advantages:

1. Power and Efficiency

Dual 5W LED configuration for balanced lighting performance.

System efficacy of 110lm/W for optimal energy usage.

IEC certified driver ensures reliable and efficient power management.

2. Durability and Protection

Constructed with metal, aluminum, and tempered glass for long-lasting durability.

IP66 rating provides superior protection against dust and water ingress.

Operates effectively in a wide temperature range from -40°C to +60°C.

3. Versatility and Control

Adjustable beam angle of 90° for versatile lighting applications.

Wall mount installation method for easy and flexible setup.

Standard grey fixture color for a neutral and professional appearance.

Specifications

Lighting Data Electrical Data
LED Type Cree Power Supply IEC certified driver
System Efficacy 110lm/W Input Voltage 100~240V ac
System Power Consumption 2x5W Power Frequency 50~60Hz
CCT 6000K Charging Time 24 H
Beam Angle 90° Discharging Time 3 H
CRI Ra80 Power Efficiency >90%
Lens Clear/Mist Power Factor >0.90
SDCM <5 Battery Lithium Battery 1.2V800mAh
Material Data Packing Data
Fixture Material Metal+Alu.+Temple glass Junction Temperature(Tj) <70°C(Ta=30°C)
Powder Coating AkzoNobel Storage Temperature -40~+80°C
Cable 3x 0.75mm Operating Temperature -40~+60°C
Ingress Protection IP66 Outlook Size(MM) 260x60x215
Life Span 10 years at 12 hours/day Export Carton Size 57x46x25.5CM/8pcs/10KG

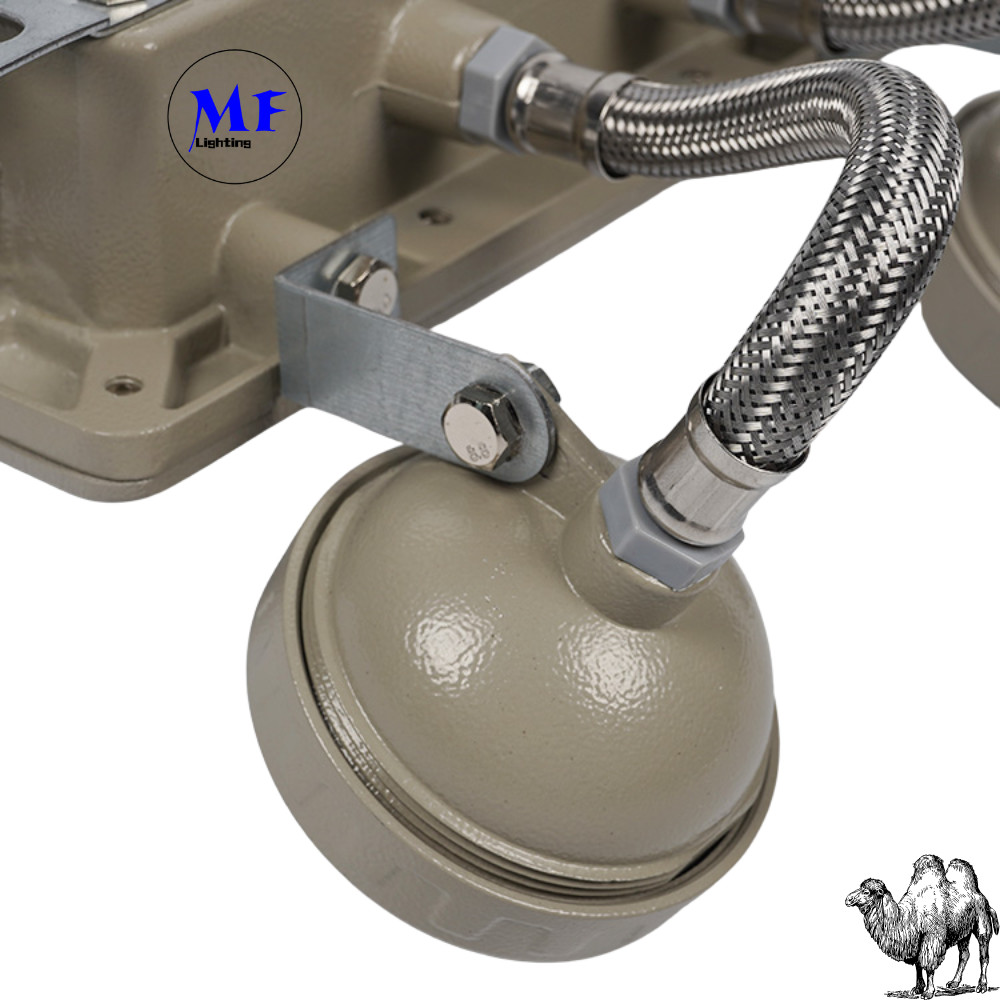

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 1

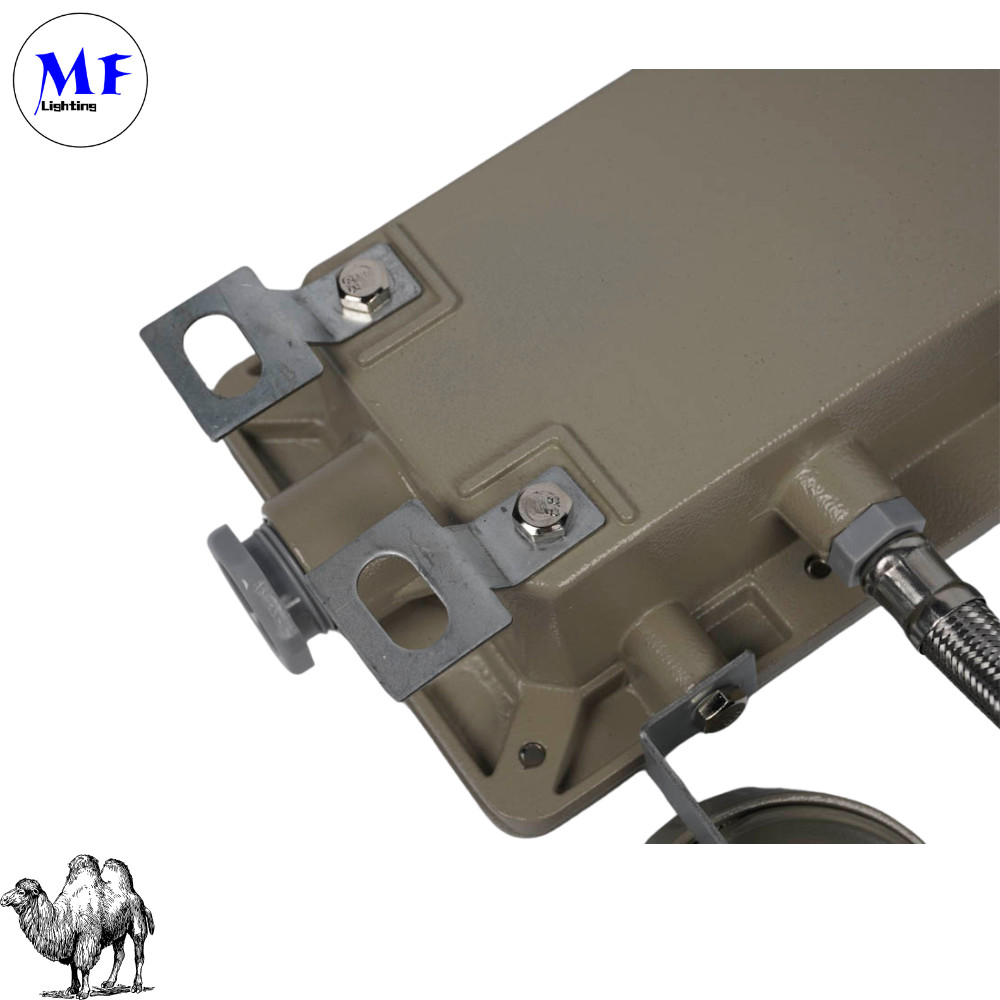

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 2

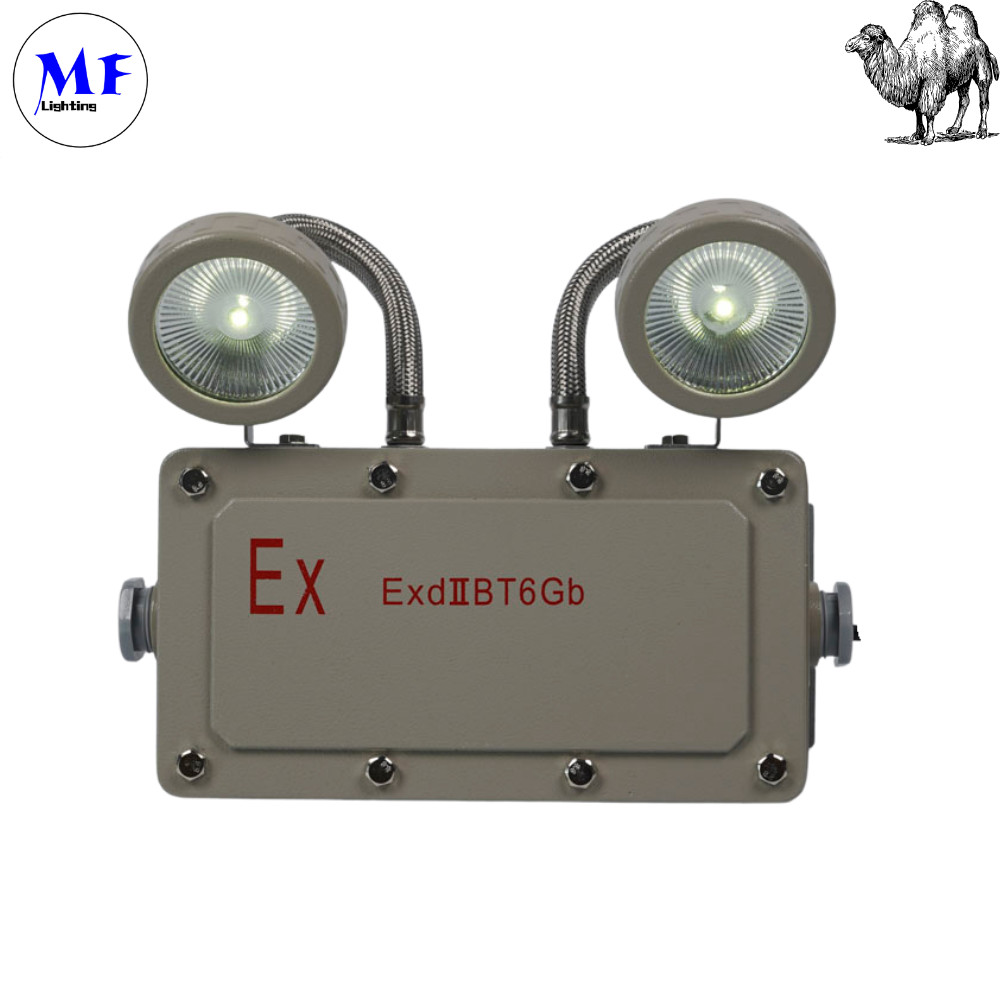

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 3

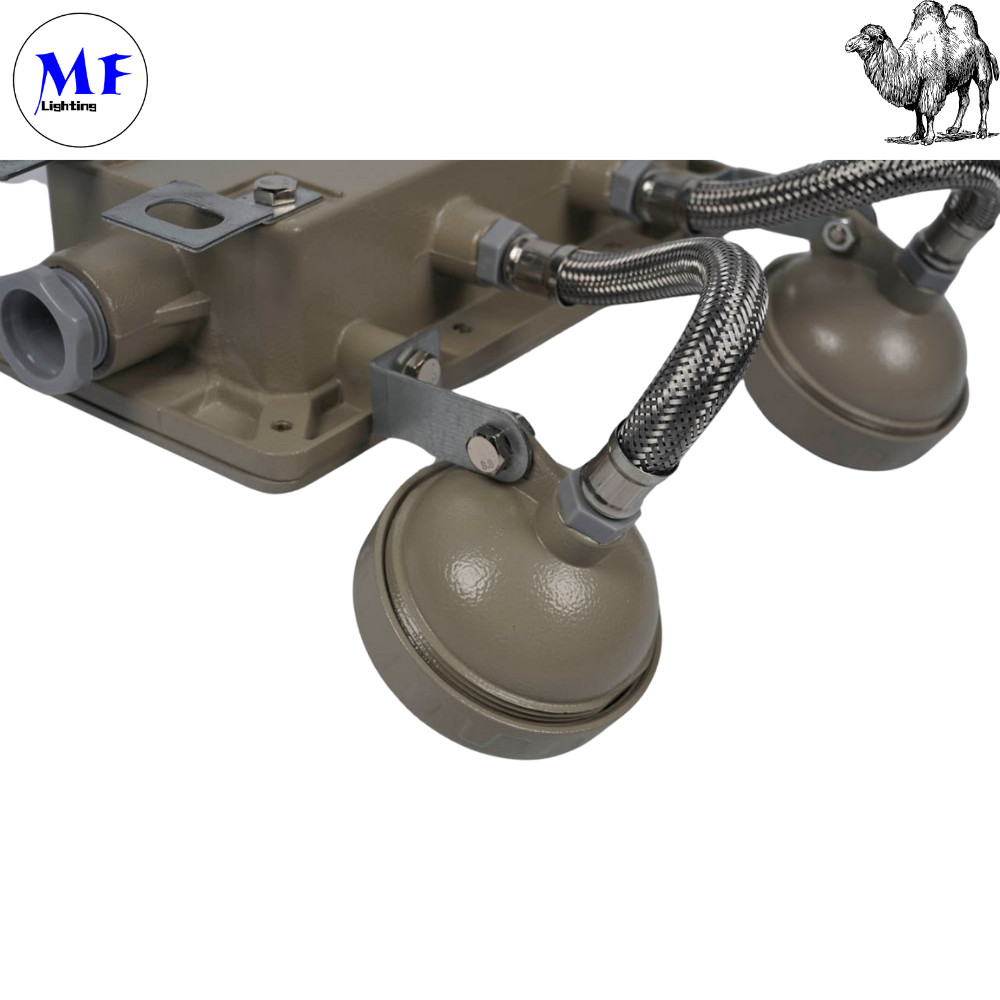

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 4

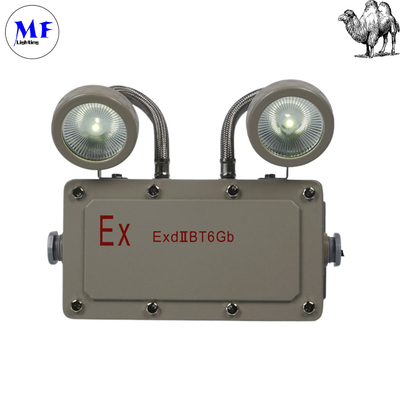

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 5

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 6

High Performance Emergency LED Light 110lm/W 10W Explosion-Proof Lithium Battery Long Lifespan IP66 Rated Hazardous Gas for Dust Environments 7

SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients:
OEM/ODM Serivce
Photometric/IES file
Dialux simulation design
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.
